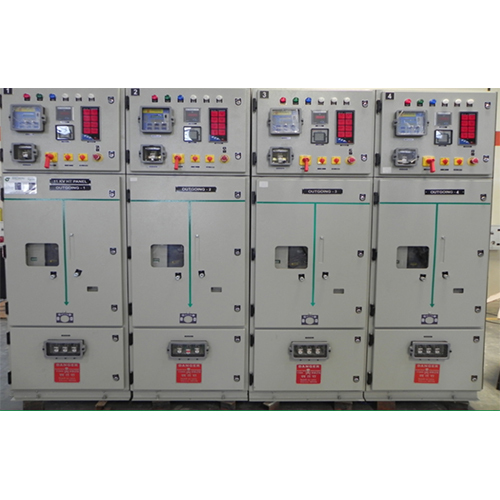

11KV - 33KV HT VCB Panel

Product Description

§  Warranty: 1 Year

§  Display Type: Digital

§  Material: Mild Steel

§  Application: Substations, Industrial plants, Power Generation, Commercial Buildings, Renewable Energy Systems

§  Surface Finish: Powder coating

§  IP Rating: For Indoor: IP4X to IP54 & For Outdoor: IP55 to IP65

§  Payment Terms: 100% Advance Before Dispatch

§  Technical Details:

a.       Nominal System Voltage: 11KV/33KV

b.       Highest System Voltage: 12KV/36KV

c.       Rated Frequency: 50HZ / 60HZ

d.       Number of Phase: 3 Phase

e.       Rated Continuous Current (A): Common ratings include 400A, 630A, 800A, 1250A, 1600A, 2000A, etc. (specify the range your panels offer)

f.        Rated Breaking Capacity (kA): Common ratings include 25 kA, 26.3 kA, 31.5 kA, 40 kA, etc.

g.       Rated Making Capacity (kA): Typically, 2.55 times the rated breaking capacity

h.       Short-Time Withstand Current (kA for s): Common ratings include 25 kA for 1 second, 31.5 kA for 3 seconds, etc.

i.         Rated Impulse Withstand Voltage (kV peak): Typically, 75 kV

j.         Rated Power Frequency Withstand Voltage (kV rms): Typically, 28 kV

k.        Operating Mechanism: Spring operated (manual/motor charged), magnetic actuator (specify the type)

l.         Auxiliary Supply Voltage (AC/DC): Specify the voltage for motor charging, control circuits, and relays (e.g., 110V DC, 220V AC/DC)

m.     Degree of Protection: IP rating for the enclosure (e.g., IP4X for indoor, IP55/IP65 for outdoor)

n.       Mechanical Endurance (Operations): Specify the number of mechanical operations the VCB is designed for.

o.       Electrical Endurance (Operations at Rated Current & Fault Current): Specify the number of electrical operations at different current levels.

   Product Description

·         An 11/33 kV Vacuum Circuit Breaker (VCB) panel is a crucial component in medium-voltage electrical distribution systems, operating at a rated voltage of 11/33 kilovolts (kV).

·         It houses a vacuum circuit breaker, which is responsible for interrupting the flow of electrical current to protect equipment and personnel from faults like overloads and short circuits.

·         It's an enclosure containing a Vacuum Circuit Breaker (VCB) and associated control, protection, and metering devices.
